SEC401 - Vulnerability Management and Response
Lab 3.1 - Network Discovery
Solo, Lab
Focus: Network Security
Level: SEC401
Date: Apr 2026
Artifacts: Sanitized screenshots of Nmap scans, ndiff baseline comparison, post-discovery SSH and iptables review
TL;DR
- •Enumerated a /24 lab network with Nmap ping, port, version, and OS scans
- •Baselined results to XML and used ndiff to detect a new service between scans
- •Pivoted to a discovered host to review netstat, iptables rules, and served content
Skills demonstrated
Note: Course-provided PCAPs and lab instructions are not shared. Only my own captures and sanitized notes are published.
Why this matters
Network discovery is the first step of almost every attack and almost every defensive asset inventory. Knowing how to surface live hosts, services, and changes between scans is the difference between an asset inventory that reflects reality and a spreadsheet that went stale six months ago.
Context
This lab demonstrates a full network discovery workflow against a lab environment of seven Docker containers on 172.28.14.0/24, then pivots to one of the discovered hosts to validate what the scan found at the OS and firewall layer.
Tools used
Steps taken

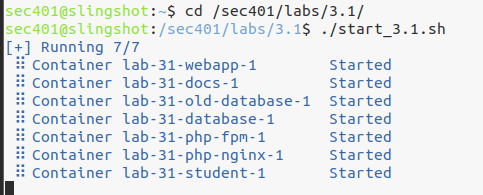

1Lab environment startup
Launched the lab stack from /sec401/labs/3.1. The start script brought up seven Docker containers: webapp, docs, database, old-database, php-fpm, php-nginx, and a student container used as the scanning host.

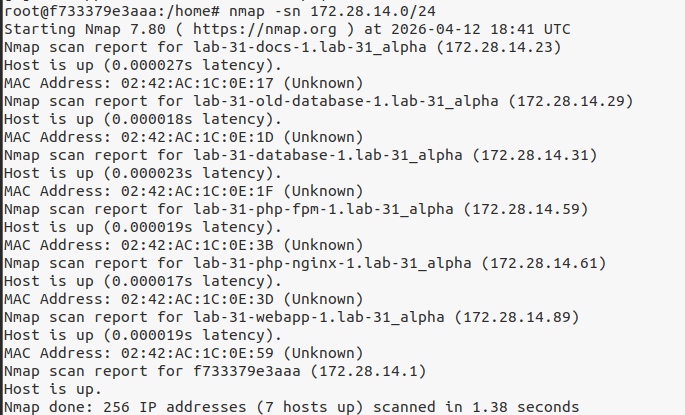

$ cd /sec401/labs/3.1/ && ./start_3.1.sh2Ping sweep: discover live hosts
Ran a host-discovery-only scan against the /24. Nmap reported 7 hosts up in 1.38 seconds, each with a 172.28.14.x address, matching the containers launched by the start script.

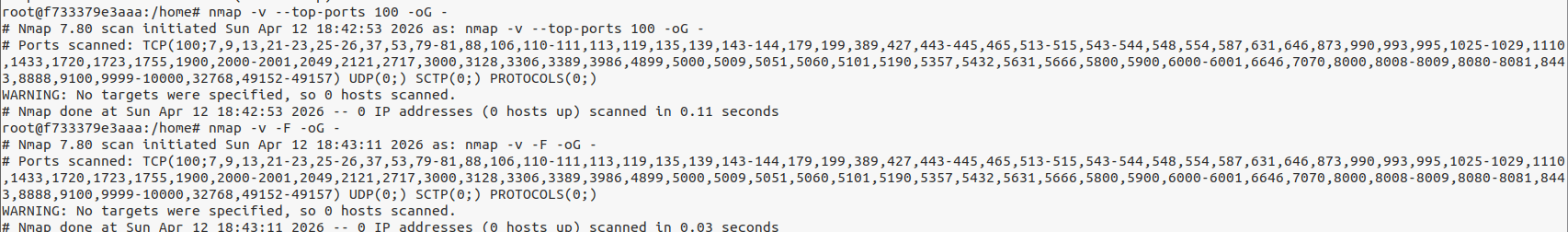

$ nmap -sn 172.28.14.0/24-snping scan, no port scan172.28.14.0/24256-address lab subnet3Greppable port sweeps
Demonstrated two greppable-output scans: --top-ports 100 and the -F fast scan. Both ran against the default target (none supplied on the CLI), so they returned zero hosts. The point was to capture the exact port list each scan covers in the header comment for documentation.
$ nmap -v --top-ports 100 -oG -

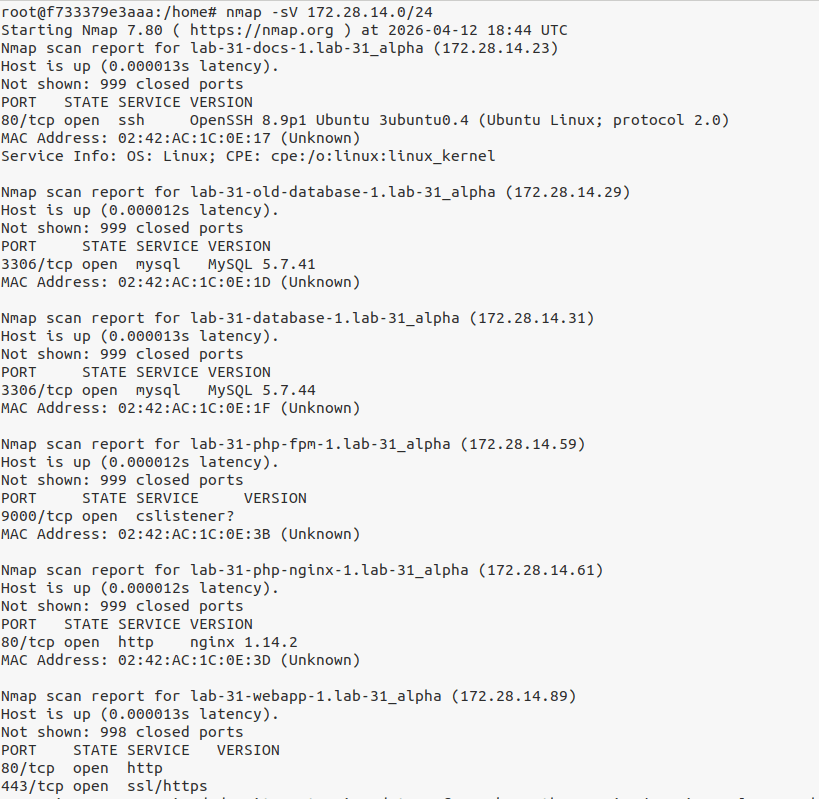

$ nmap -v -F -oG --vverbose--top-ports 100scan the 100 most common TCP ports-Ffast scan (~top 100 from nmap-services)-oG -greppable output to stdout4Service and version detection
Enumerated services on every live host: OpenSSH 8.9p1 on the docs host, MySQL 5.7.41/5.7.44 on the two database hosts, nginx 1.14.2 on php-nginx, an unknown cslistener on php-fpm:9000, and http/https on the webapp. CPE entries (cpe:/o:linux:linux_kernel) confirm a Linux target fleet.

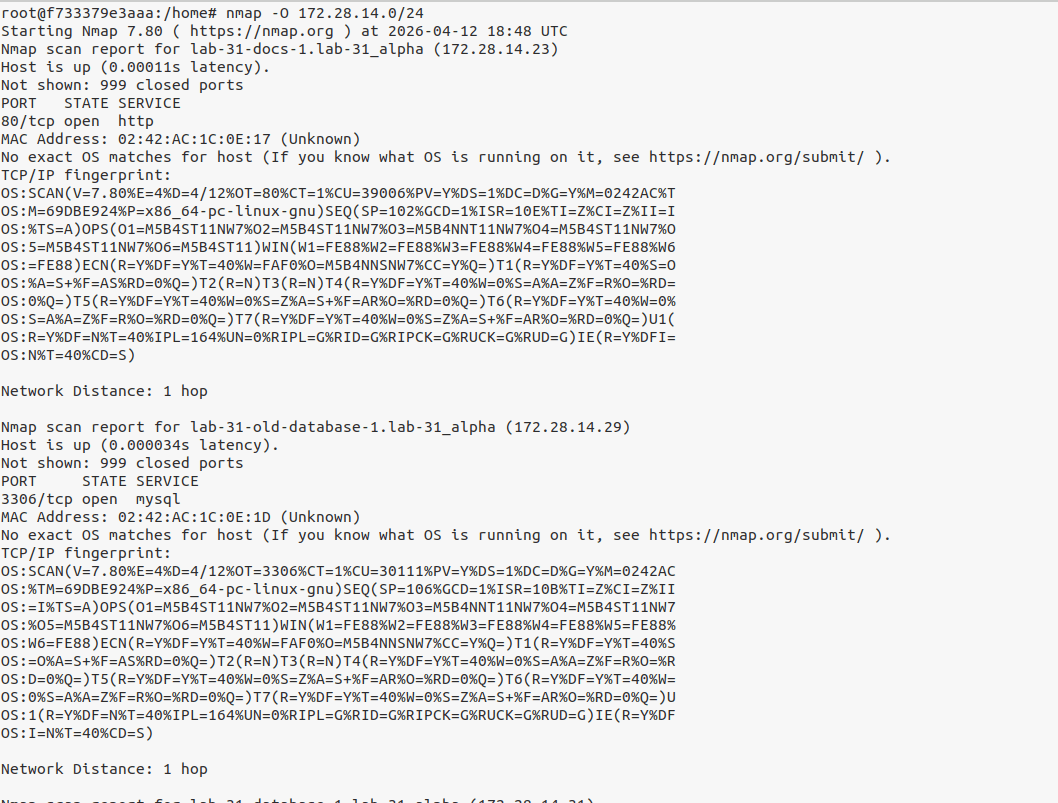

$ nmap -sV 172.28.14.0/24-sVprobe open ports for service/version info5OS detection: strict match
Ran a strict OS fingerprint. Nmap collected a full TCP/IP signature for each host but reported 'No exact OS matches' because containers don't present a clean kernel fingerprint over the network.

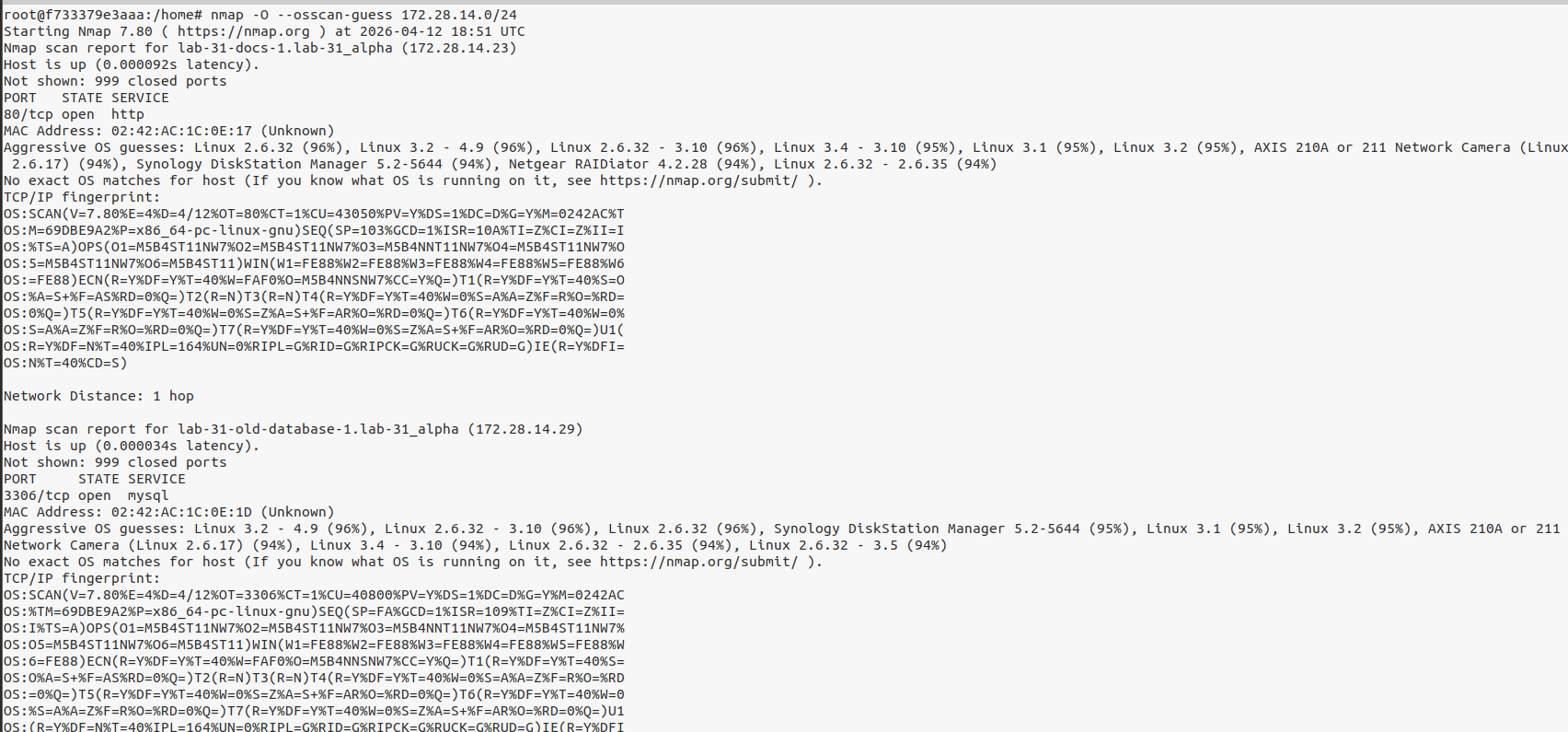

$ nmap -O 172.28.14.0/24-OOS fingerprinting based on TCP/IP stack behavior6OS detection: aggressive guess
Re-ran with --osscan-guess. Nmap returned probability-weighted matches: Linux 2.6.32 (96%), Linux 3.2-4.9 (96%), with odd long-tail guesses like AXIS 210A network camera and Synology DiskStation. Useful reminder that OS detection degrades badly against virtualized or containerized hosts.

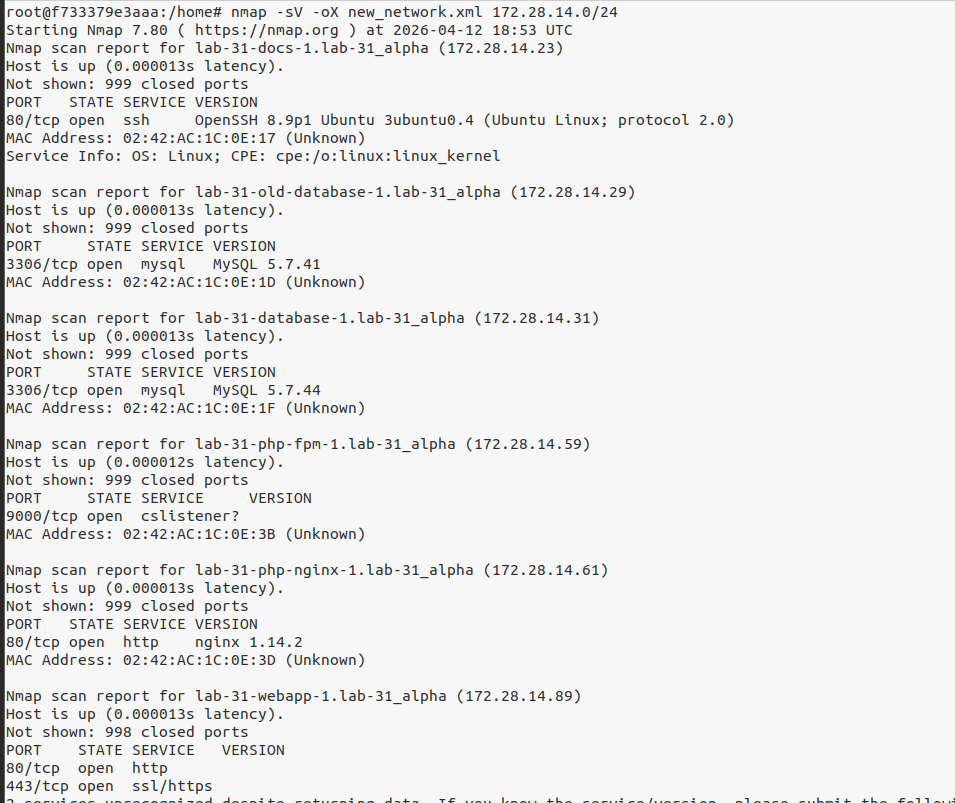

$ nmap -O --osscan-guess 172.28.14.0/24--osscan-guessprint closest matches even when no exact match7Baseline scan saved to XML
Saved a second version scan to new_network.xml. XML output is the format ndiff consumes and the format most asset-management pipelines ingest.

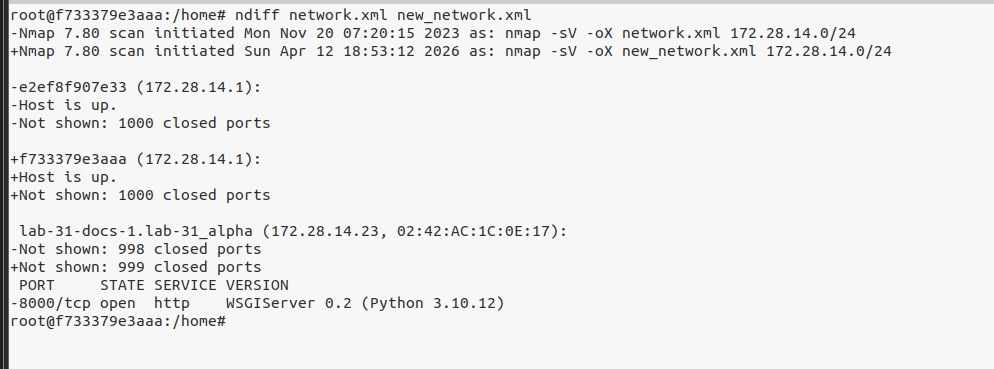

$ nmap -sV -oX new_network.xml 172.28.14.0/24-oXXML output file8ndiff: detect scan-over-scan change
Compared an older baseline (network.xml, Nov 2023) to new_network.xml (Apr 2026). ndiff surfaced a new listener on the docs host: 8000/tcp open http WSGIServer 0.2 (Python 3.10.12). This is the exact signal an asset inventory wants, a service that wasn't there before, on a host you thought you understood.

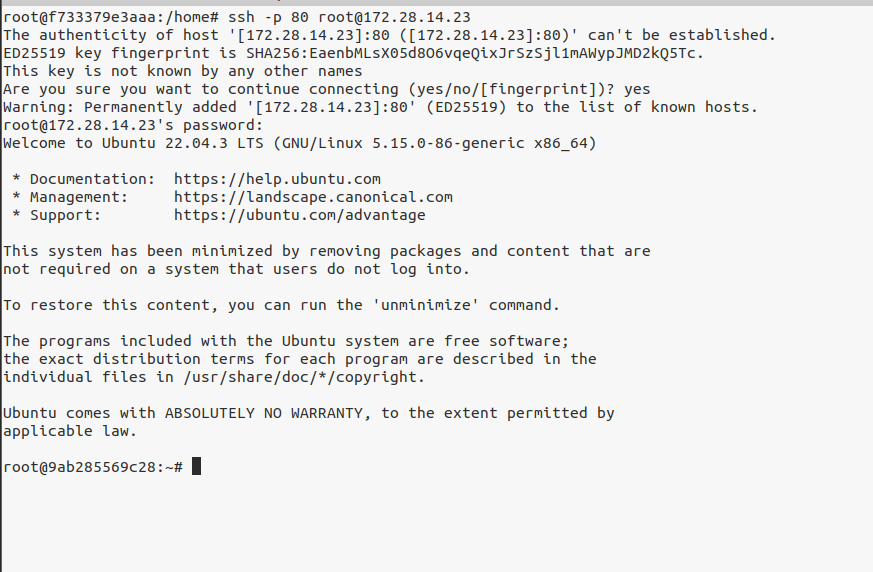

$ ndiff network.xml new_network.xmlndiffNmap-aware diff of two XML scans, lines prefixed with + for added and - for removed9SSH on a non-standard port
The docs host was advertising SSH on port 80, not 22. Connected with ssh -p 80 and authenticated into the Ubuntu 22.04 container. Non-standard service ports defeat naive scanners that only check well-known ports, which is exactly why -sV matters.

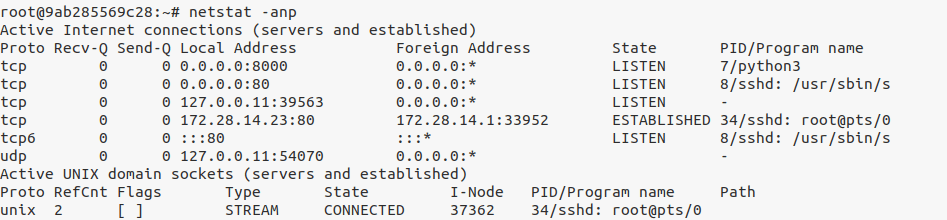

$ ssh -p 80 root@172.28.14.23-p 80connect to SSH running on port 8010Post-compromise: netstat on target
From inside the docs host, listed listening sockets. Confirmed python3 listening on 0.0.0.0:8000, sshd on :80, a loopback resolver on 127.0.0.11:39563, and an established SSH session from the scanning host (172.28.14.1).

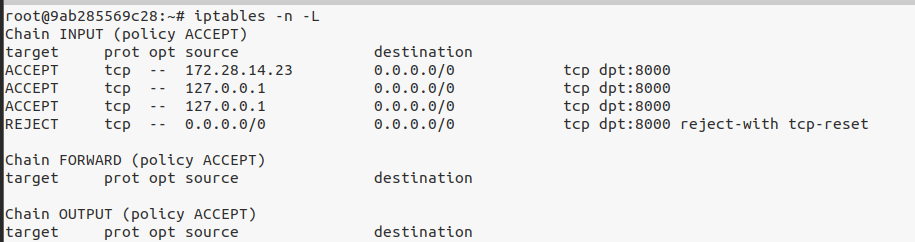

$ netstat -anp-aall sockets; -n: numeric addresses; -p: show owning process/PID11iptables rules for the new service
Reviewed the INPUT chain. Port 8000 is only reachable from 172.28.14.23 (self) and loopback; every other source gets REJECT tcp-reset. That explains why the WSGI service only became visible once the scan originated from inside the lab subnet, it was firewalled from external sources.

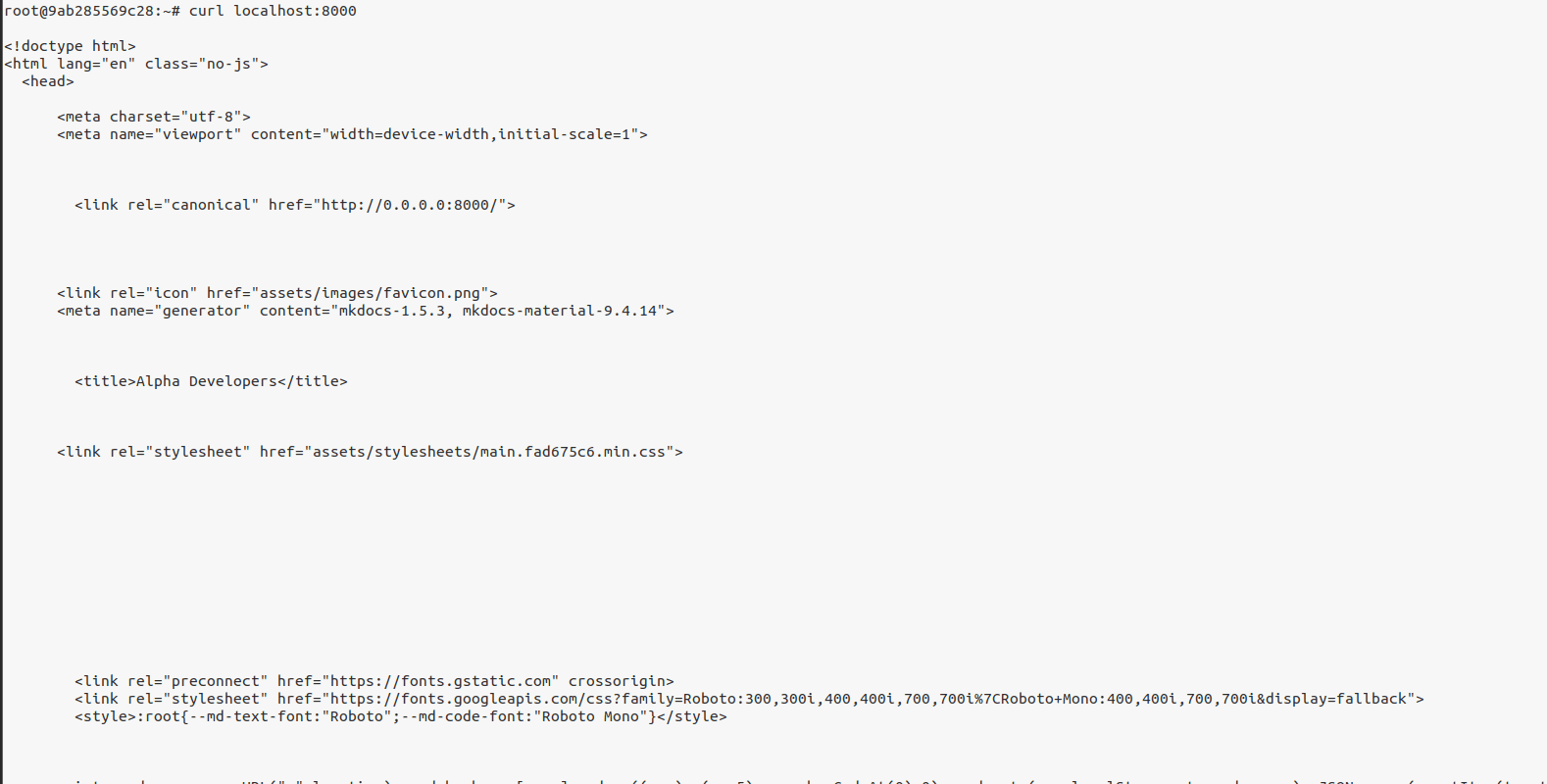

$ iptables -n -L-nnumeric output (no DNS/port name lookup)-Llist rules12Retrieve the served page
curled localhost:8000 from the docs host. Response was the 'Alpha Developers' internal documentation portal built with mkdocs-material 9.4.14. Confirms what the port, the process, and the ndiff finding all hinted at: an internal docs site that should never have been exposed beyond loopback.
$ curl localhost:8000Key findings
Outcome / Lessons learned
Produced a reliable asset inventory of the /24, including services, versions, likely OS, and a meaningful diff against an older baseline. The ndiff workflow caught exactly the kind of drift that tends to go unnoticed in real environments, a new internal service quietly appearing on an existing host.
In production I'd schedule the -sV XML scan on a cadence (weekly at minimum), store baselines in version control or an asset-management DB, and pipe ndiff output into a ticketing workflow so every new port/service change produces an owner-assigned ticket. I'd also run authenticated scans where possible, since unauthenticated Nmap misses a lot.
Security controls relevant
- Asset inventory and CMDB accuracy
- Host-based firewalls (iptables / nftables) restricting service exposure
- Change-detection pipelines (ndiff, diff-based alerting)
- Service hardening: don't expose dev/docs sites on 0.0.0.0
- Non-standard port hygiene: document, don't rely on, port obscurity
What I took away from this
The part most people skip is the baseline. Running Nmap once gets you an asset list; running it twice and diffing with ndiff gets you a detection. That's the whole game in asset management: the first scan is inventory, the second scan is a signal. Most orgs never do the second scan.
OS detection against containers is nearly useless, and that's worth internalizing. The lab returned 'no exact matches' on every host, then 96% confidence guesses across four different kernel families once --osscan-guess was enabled. In a real environment full of containers and cloud VMs, fingerprinting-based inventory is a weak signal. Better to enumerate via CPE from -sV and cross-reference with agent data.
The SSH-on-80 finding is the kind of thing that trips up junior analysts. A top-1000 scan without -sV would have reported 80/tcp open http and moved on. -sV is what separates 'there's a web server here' from 'there's an SSH daemon pretending to be a web server.' On a real red team, mis-labeled ports are where defenders lose visibility.
