SEC401 – Network Forensics

Lab 1.3 - AWS VPC Flow Log Analysis

Solo, Lab

Focus: Cloud Network Forensics

Level: SEC401

Date: Apr 2026

Artifacts: Sanitized screenshots from VPC flow log analysis and NetFlow conversion

TL;DR

  • •Extracted 33,232 attacker flows from 173K records across 579 compressed VPC log files
  • •Identified 6.5-hour attack window with 265MB exfiltrated on port 8889 and 190MB on port 80
  • •Confirmed full attack surface (ports 80, 22, 8889) via PCAP-to-NetFlow conversion with nfpcapd/nfdump

Skills demonstrated

AWS VPC Flow Log analysisBulk log file processing (zcat, zgrep)Attacker flow extraction and filteringData exfiltration quantificationTimestamp correlation (epoch conversion)PCAP-to-NetFlow conversion (nfpcapd/nfdump)Network flow analysisAttack surface enumeration

Note: Course-provided PCAPs and lab instructions are not shared. Only my own captures and sanitized notes are published.

Why this matters

VPC Flow Logs are often the first data source available during a cloud incident. Knowing how to rapidly extract attacker flows from hundreds of compressed log files, calculate data exfiltration volumes, and correlate with PCAP-derived NetFlow is exactly what a SOC analyst or incident responder does when investigating a breach in AWS.

Context

This lab demonstrates how to analyze AWS VPC Flow Logs to investigate attacker activity at scale. Starting with 579 gzip-compressed log files containing 173,198 flow records, the goal was to extract, filter, and quantify traffic from a known attacker IP (20.106.124.93), determine the attack timeframe, calculate data transfer volumes per service, and convert PCAP data into NetFlow format for comparison analysis.

Tools used

AWS VPC Flow LogszcatzgrepawksortnfpcapdnfdumpCLI

Steps taken

1List and identify VPC flow log files

Listed all files in the log directory: 579 gzip-compressed VPC flow log files. Used the file command to confirm they were gzip compressed data from a FAT filesystem, original size ~32KB each.

$ ls /sec401/labs/1.3/20230928/ | wc -l
$ file /sec401/labs/1.3/20230928/2226771286B0_vpcflowlogs_us-east-2_fl-0272f42338e6eeaaf_20230928T23552_e92fb168.log.gz
wc -lcount files
fileidentify file type and compression

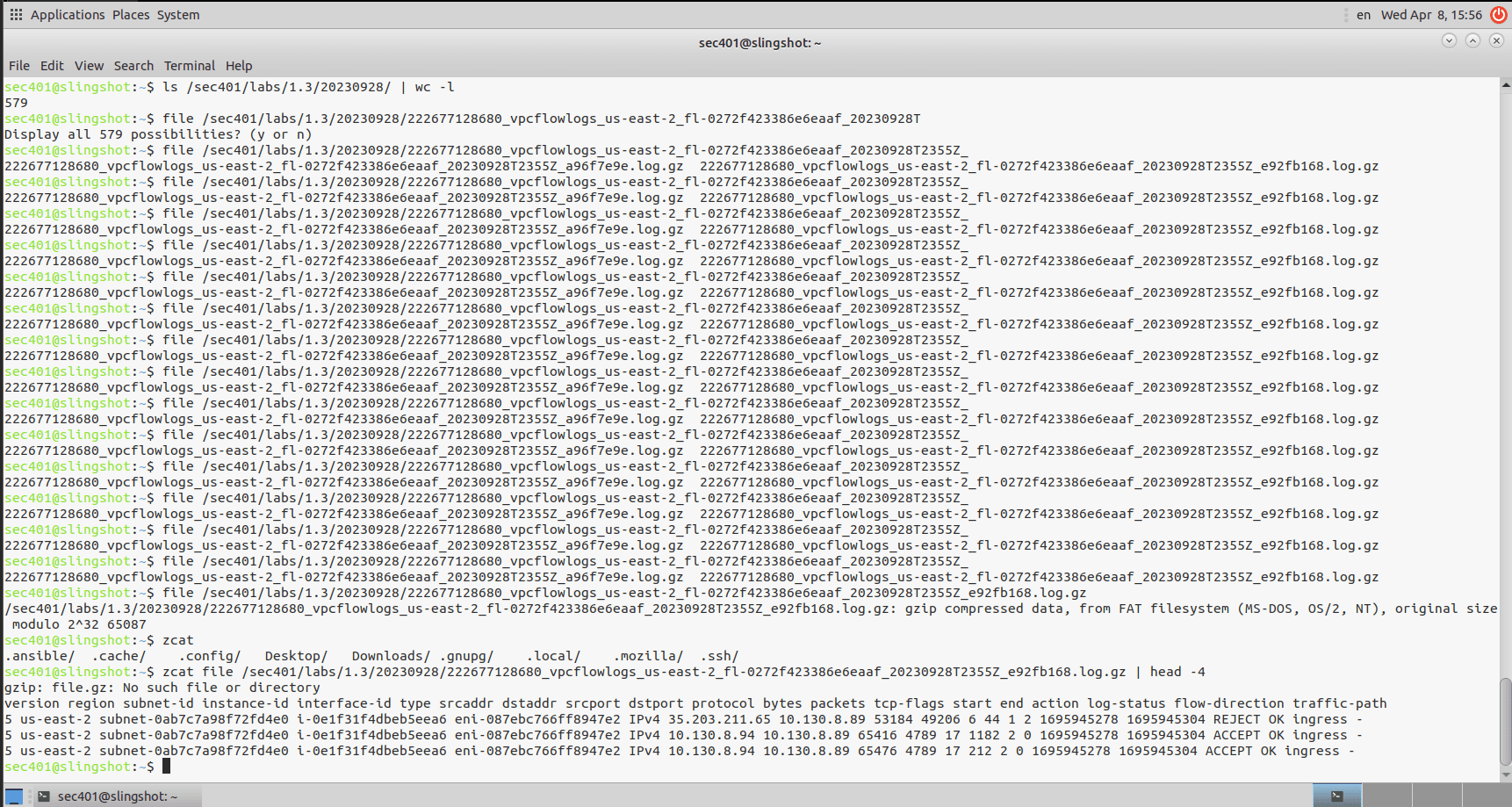

2Inspect flow log format and sample records

Decompressed a log file with zcat and piped to head -4 to see the header and first records. The VPC flow log format includes: version, region, account-id, instance-id, interface-id, type, srcaddr, dstaddr, srcport, dstport, protocol, bytes, packets, tcp-flags, start, end, action, log-status, flow-direction, traffic-path. First records showed 35.203.211.65 being REJECT'd and 10.130.8.94 ACCEPT'd traffic.

$ zcat file /sec401/labs/1.3/20230928/2226771286B0_vpcflowlogs_us-east-2_fl-0272f42338e6eeaaf_20230928T23552_e92fb168.log.gz | head -4
zcatdecompress and output to stdout
head -4show header + 3 sample records

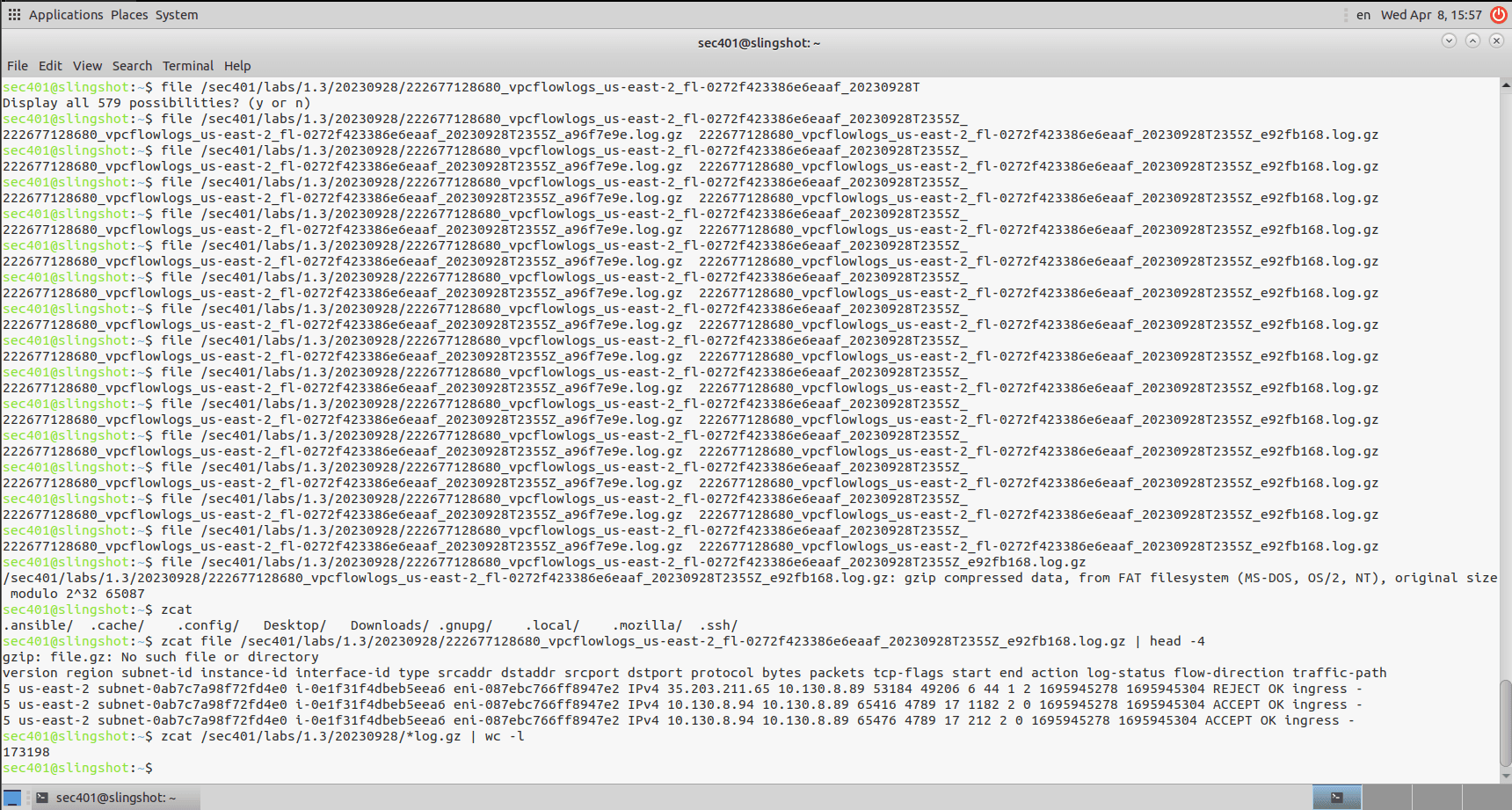

3Count total flow records

Decompressed all 579 log files and counted total lines: 173,198 flow records to investigate.

$ zcat /sec401/labs/1.3/20230928/*log.gz | wc -l
*log.gzglob all compressed logs
wc -lcount total lines

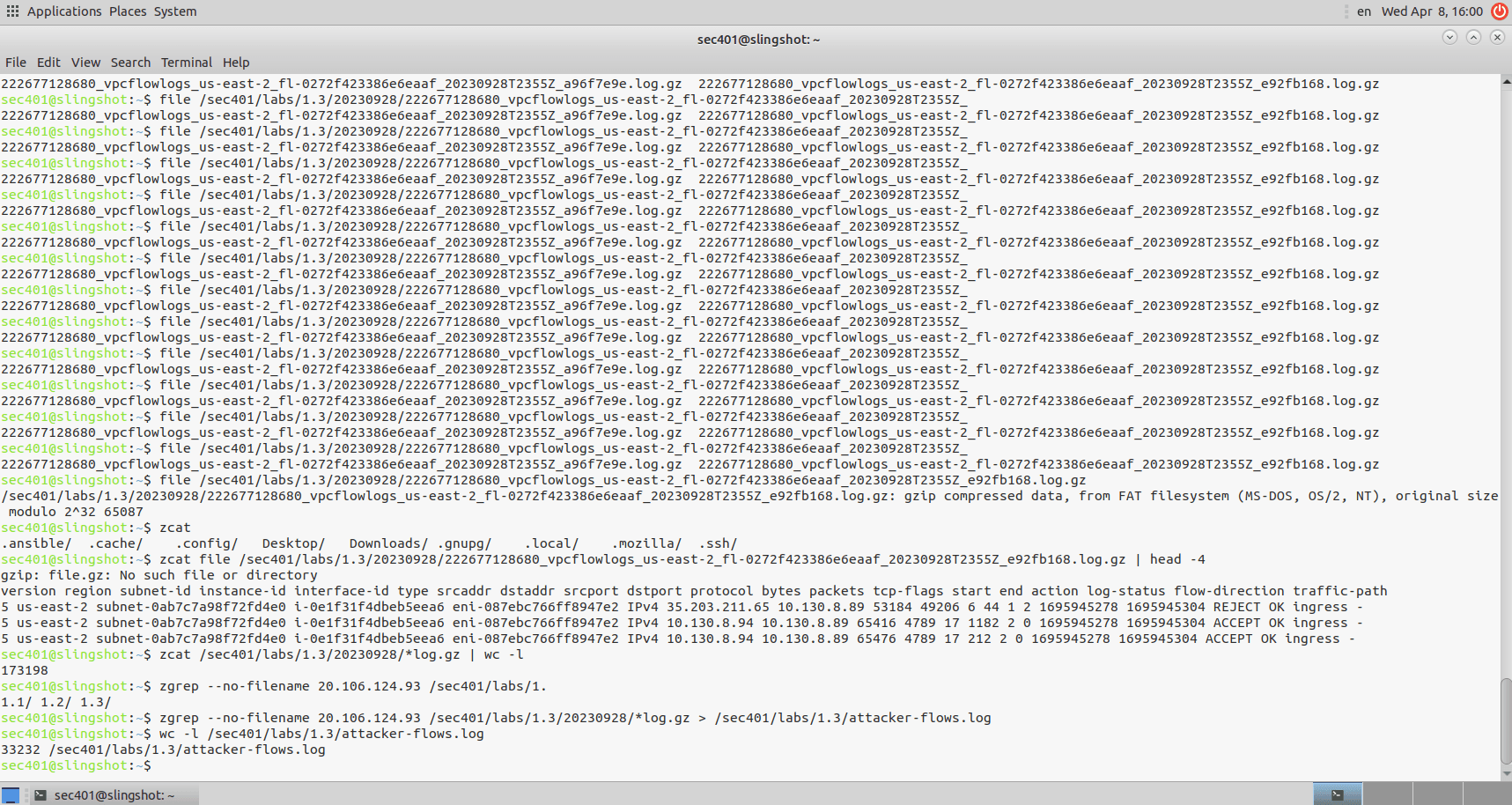

4Extract attacker flows

Used zgrep to search all compressed log files for the known attacker IP (20.106.124.93) and redirected matches to attacker-flows.log. Result: 33,232 flow records from the attacker.

$ zgrep --no-filename 20.106.124.93 /sec401/labs/1.3/20230928/*log.gz > /sec401/labs/1.3/attacker-flows.log
$ wc -l /sec401/labs/1.3/attacker-flows.log
zgrepgrep compressed files
--no-filenameomit file names from output
> redirect to attacker-flows.log

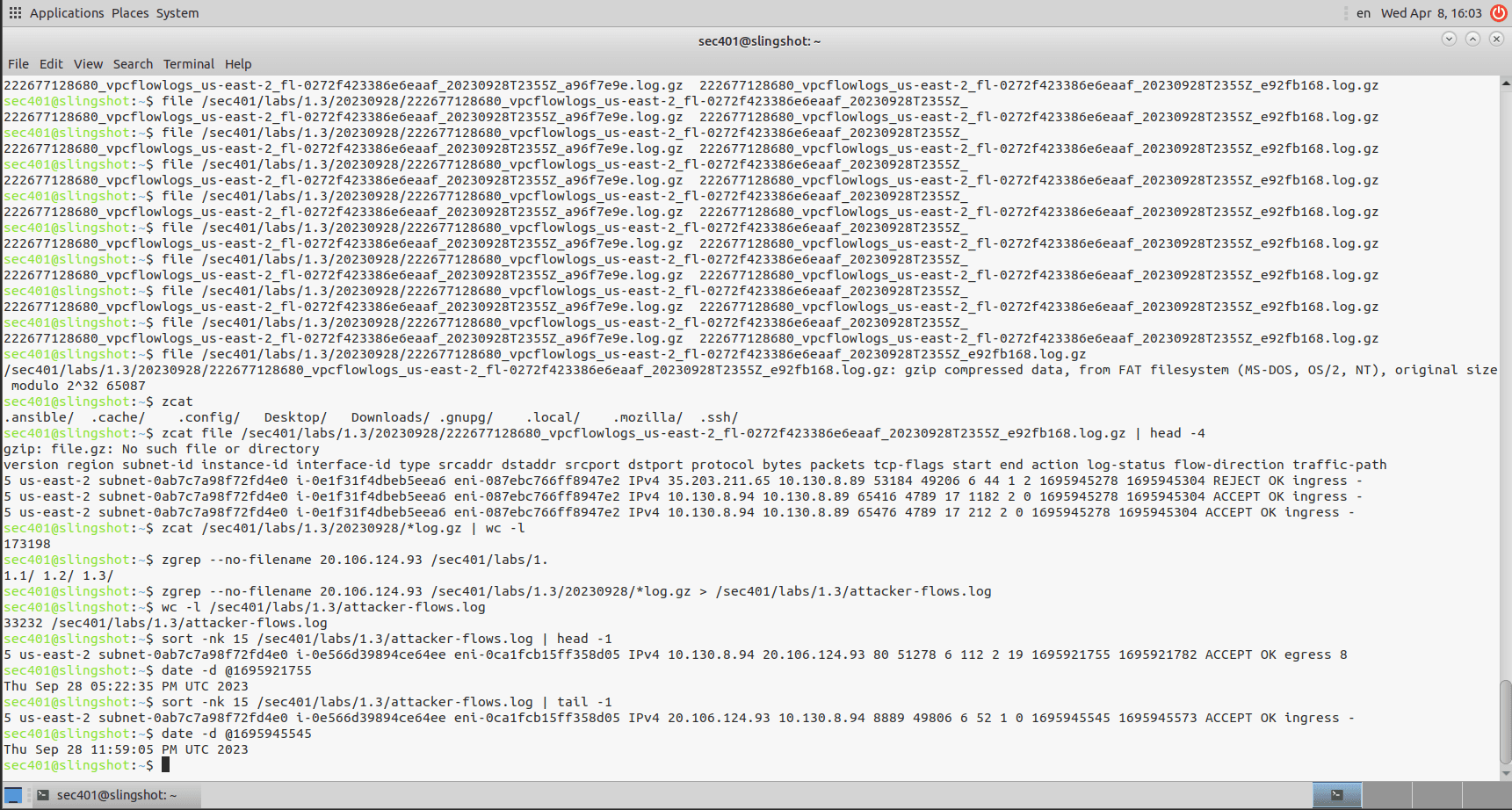

5Determine attack timeframe

Sorted attacker flows by the start-time epoch field (column 15) to find the earliest and latest timestamps. Converted epochs with date -d: the attack ran from Sep 28, 2023 5:22 PM to 11:59 PM UTC, roughly 6.5 hours.

$ sort -nk 15 /sec401/labs/1.3/attacker-flows.log | head -1
$ date -d @1695921755
$ sort -nk 15 /sec401/labs/1.3/attacker-flows.log | tail -1
$ date -d @1695945545
sort -nk 15numeric sort on column 15 (start epoch)
date -d @epochconvert epoch to human-readable

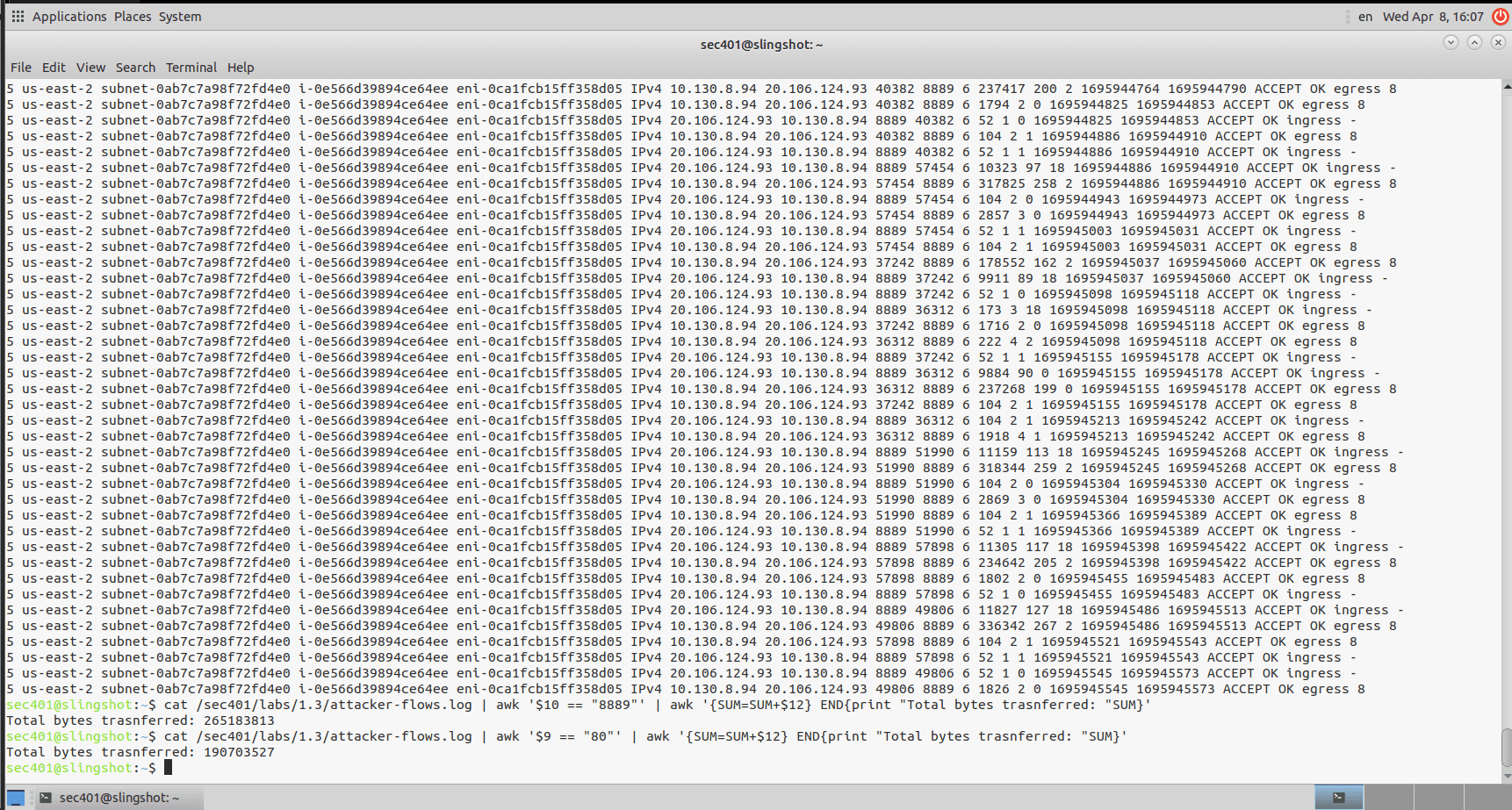

6Quantify data transfer by port

Used awk to filter attacker flows by destination port and sum the bytes field (column 12). Port 8889 transferred 265,183,813 bytes (~265MB) and port 80 transferred 190,703,527 bytes (~190MB). The high volume on port 8889 is a strong indicator of data exfiltration over a non-standard port.

$ cat attacker-flows.log | awk '$10 == "8889"' | awk '{SUM=SUM+$12} END{print "Total bytes transferred: "SUM}'
$ cat attacker-flows.log | awk '$9 == "80"' | awk '{SUM=SUM+$12} END{print "Total bytes transferred: "SUM}'
$10 == "8889"filter by dst port 8889
$9 == "80"filter by dst port 80
$12bytes field
SUM+$12running total

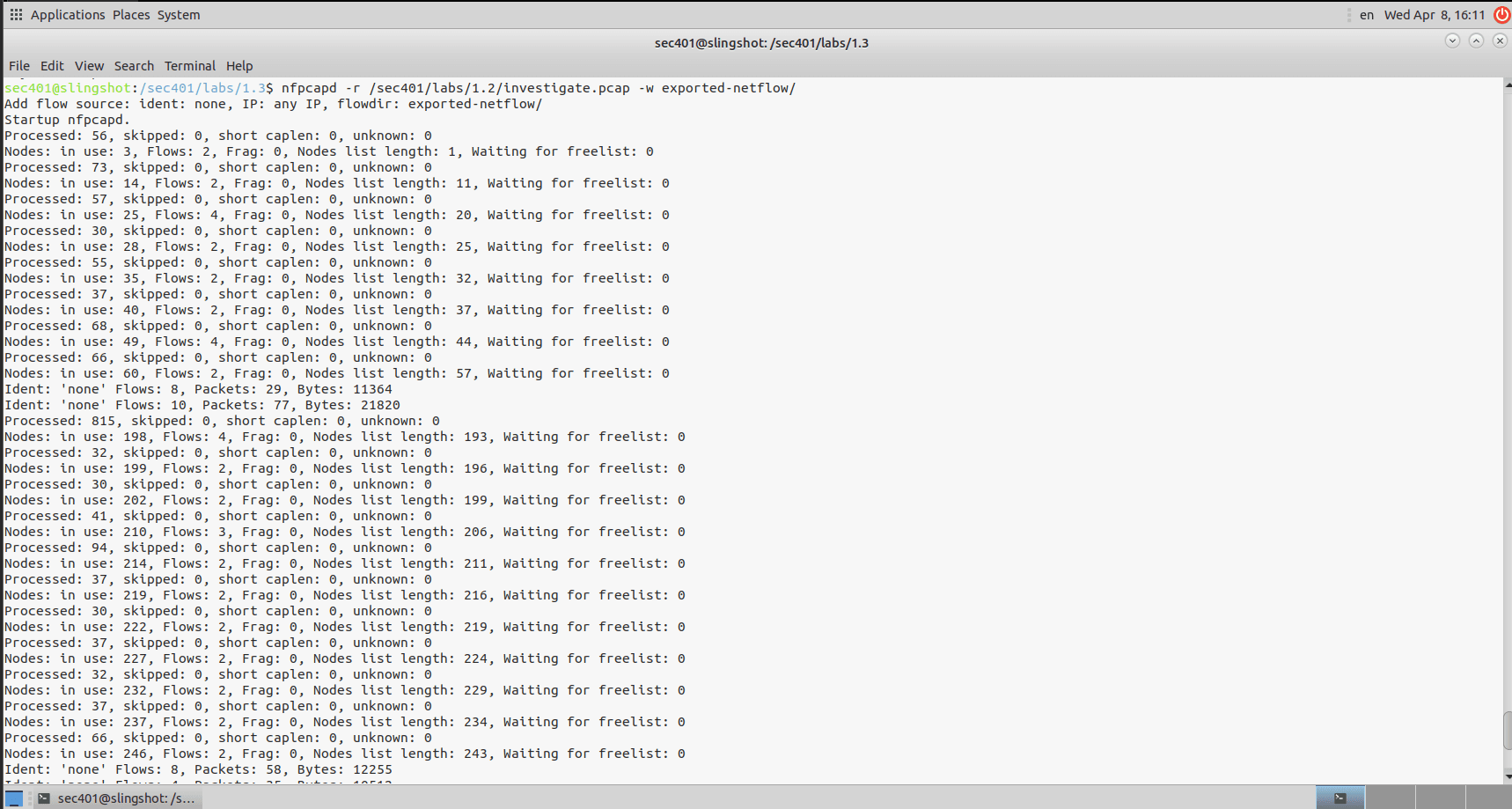

7Convert PCAP to NetFlow with nfpcapd

Used nfpcapd to convert the investigate.pcap from Lab 1.2 into NetFlow format, outputting to exported-netflow/ directory. This enables flow-level analysis of the same traffic using NetFlow tools.

$ nfpcapd -r /sec401/labs/1.2/investigate.pcap -w exported-netflow/
-rread PCAP file
-wwrite NetFlow output directory

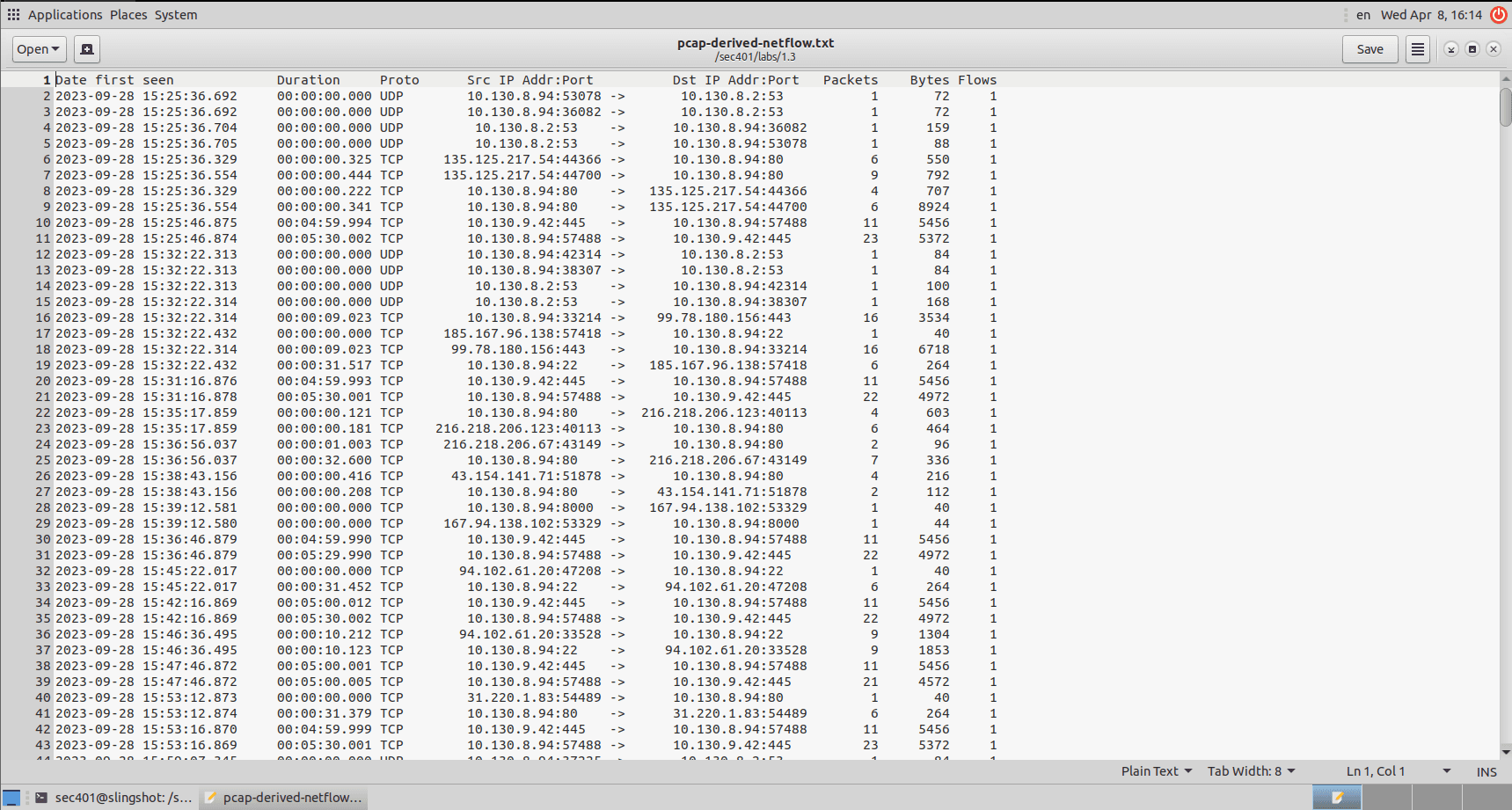

8Analyze NetFlow with nfdump

Dumped the converted NetFlow data to a text file and opened it. The output shows Date first seen, Duration, Proto, Src/Dst IP:Port, Packets, Bytes, and Flows columns. This structured format makes it easy to filter and correlate with VPC flow log findings.

$ nfdump -R exported-netflow/ > pcap-derived-netflow.txt
-Rread recursively from directory

9Filter NetFlow for attacker on port 80

Filtered the PCAP-derived NetFlow for the attacker IP on port 80. Confirmed HTTP traffic: 20.106.124.93:51278 to 10.130.8.94:80, matching the WordPress brute-force activity found in Labs 1.1 and 1.2.

$ head -1 pcap-derived-netflow.txt; cat pcap-derived-netflow.txt | grep 20.106.124.93 | head -2

10Filter for attacker SSH traffic

Excluded port 80 and filtered for remaining attacker flows. Found SSH connections on port 22 from 20.106.124.93:38504 to 10.130.8.94:22, indicating the attacker also accessed the server via SSH.

$ head -1 pcap-derived-netflow.txt; cat pcap-derived-netflow.txt | grep 20.106.124.93 | grep -v :80 | head -2

11Identify non-standard port activity

Excluded ports 80 and 22, revealing traffic on port 8889: 20.106.124.93:8889 to 10.130.8.94:36072. Port 8889 is not a well-known service (confirmed via /etc/services), making this a likely data exfiltration channel consistent with the 265MB volume found in VPC flow logs.

$ head -1 pcap-derived-netflow.txt; cat pcap-derived-netflow.txt | grep 20.106.124.93 | grep -v :80 | grep -v :22 | head -2
grep -vexclude matches
Sequential exclusion isolates unknown services

12Confirm complete attack surface

Excluded all three known ports (80, 22, 8889) from attacker flows. Empty result confirmed the attacker used only these three services: HTTP for the initial brute-force, SSH for interactive access, and port 8889 for data exfiltration.

$ head -1 pcap-derived-netflow.txt; cat pcap-derived-netflow.txt | grep 20.106.124.93 | grep -v :80 | grep -v :22 | grep -v :8889 | head -2

Key findings

579 compressed VPC flow log files, 173,198 total flow records
33,232 flows from attacker IP 20.106.124.93 (~19% of all traffic)
Attack window: Sep 28, 2023 5:22 PM to 11:59 PM UTC (~6.5 hours)
Port 8889: 265MB transferred (data exfiltration via non-standard port)
Port 80: 190MB transferred (HTTP brute-force and web access)
Port 22: SSH access confirmed via NetFlow correlation
No additional attacker ports found, confirming complete attack surface enumeration

Outcome / Lessons learned

This lab demonstrated how to investigate attacker activity at scale using VPC Flow Logs. Starting from 579 compressed log files with 173K records, I isolated the attacker, mapped their 6.5-hour attack window, quantified data exfiltration volumes, and confirmed the complete attack surface across three services. The PCAP-to-NetFlow conversion bridged packet-level evidence from previous labs with flow-level cloud telemetry, showing how both data sources tell the same story from different angles.

If this were production: I'd feed the attacker IP into threat intel platforms for enrichment, check if port 8889 traffic triggered any IDS/IPS alerts, audit what data was accessible from the compromised instance, verify whether the SSH session was used for lateral movement to other instances, and configure VPC Flow Log alerts for anomalous outbound traffic volumes and non-standard ports.

Security controls relevant

  • Enable VPC Flow Logs on all subnets and ENIs
  • Alert on high-volume outbound traffic to non-standard ports
  • Network ACLs restricting egress to approved ports only
  • Security group rules limiting SSH access to known IPs
  • GuardDuty for automated anomaly detection on flow data
  • Centralized log aggregation (CloudWatch, S3, SIEM)

What I took away from this

265MB on port 8889 is the finding that matters most in this lab, and it's the one that would be hardest to catch in production. Most security groups configure egress rules for known ports: block outbound SSH, restrict HTTP to approved destinations. But port 8889 isn't in any default deny list because it's not a well-known service. The attacker chose it precisely because it falls into the gap between 'explicitly blocked' and 'actively monitored.' The fix isn't blocking port 8889 specifically. It's flipping the egress model: deny all outbound traffic by default, and only allow what's explicitly needed.

The 6.5-hour attack window raises a practical question: how long until someone notices? In this scenario, the attacker had nearly 7 hours of uninterrupted access. That's enough to exfiltrate an entire database, establish persistence, and pivot to other instances. Most organizations measure their mean-time-to-detect (MTTD) in days, not hours. GuardDuty would have flagged the unusual outbound volume, but only if it was enabled. VPC Flow Logs were there the entire time, recording everything, but nobody was watching in real time.

Converting the PCAP to NetFlow with nfpcapd proved something important: packet-level and flow-level data tell the same story from different angles. In a real investigation, you often have one or the other, not both. Knowing how to work with both formats and correlate between them is the difference between confirming an attack and missing half the picture. The attacker used HTTP to get in, SSH for interactive access, and port 8889 to pull data out. Flow logs showed the volume, PCAP showed the content. Together, they give you the complete kill chain.
