Lab 5.3 - Applying Windows System Security Policies

Context

This lab demonstrates how to baseline a Windows host against a security template, identify policy drift, apply a hardened configuration, and verify the change — using secedit.exe from PowerShell and the Security Templates / Security Configuration and Analysis MMC snap-ins.

Tools used

Steps taken

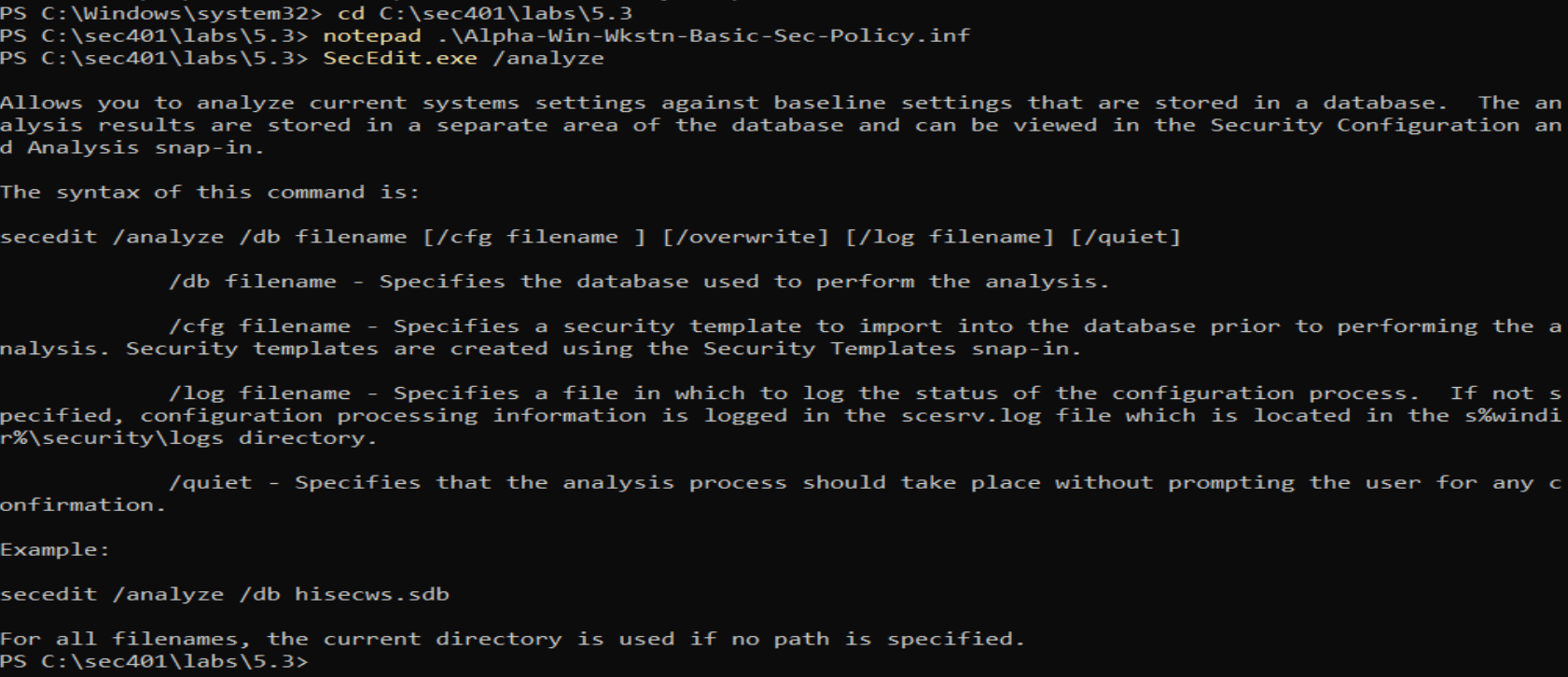

1Review secedit.exe /analyze syntax

Ran secedit /analyze with no arguments to print the help text. The workflow needs three things: a database file (/db) to hold the analysis, a configuration template (/cfg) that defines the desired state, and a log file (/log) to record per-setting results.

$ secedit.exe /analyze

/dbanalysis database (.sdb)

/cfgsecurity template file (.inf)

/logoutput log path

/quietsuppress prompts

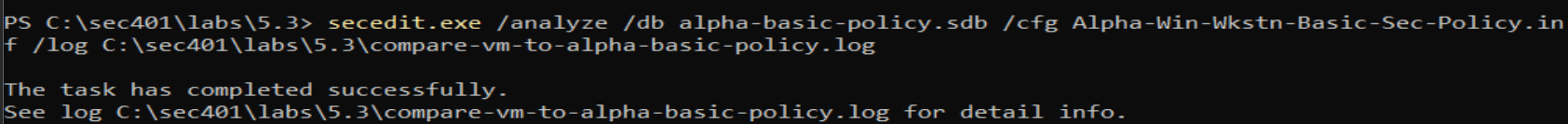

2Analyze the VM against the Alpha basic template

Ran secedit /analyze against the Alpha-Win-Wkstn-Basic-Sec-Policy.inf template. The engine compares every setting in the template to the current VM state and writes per-setting results to the compare log. Task completed successfully means the analysis engine ran cleanly — the actual drift findings live in the log.

$ secedit.exe /analyze /db alpha-basic-policy.sdb /cfg Alpha-Win-Wkstn-Basic-Sec-Policy.inf /log C:\sec401\labs\5.3\compare-vm-to-alpha-basic-policy.log

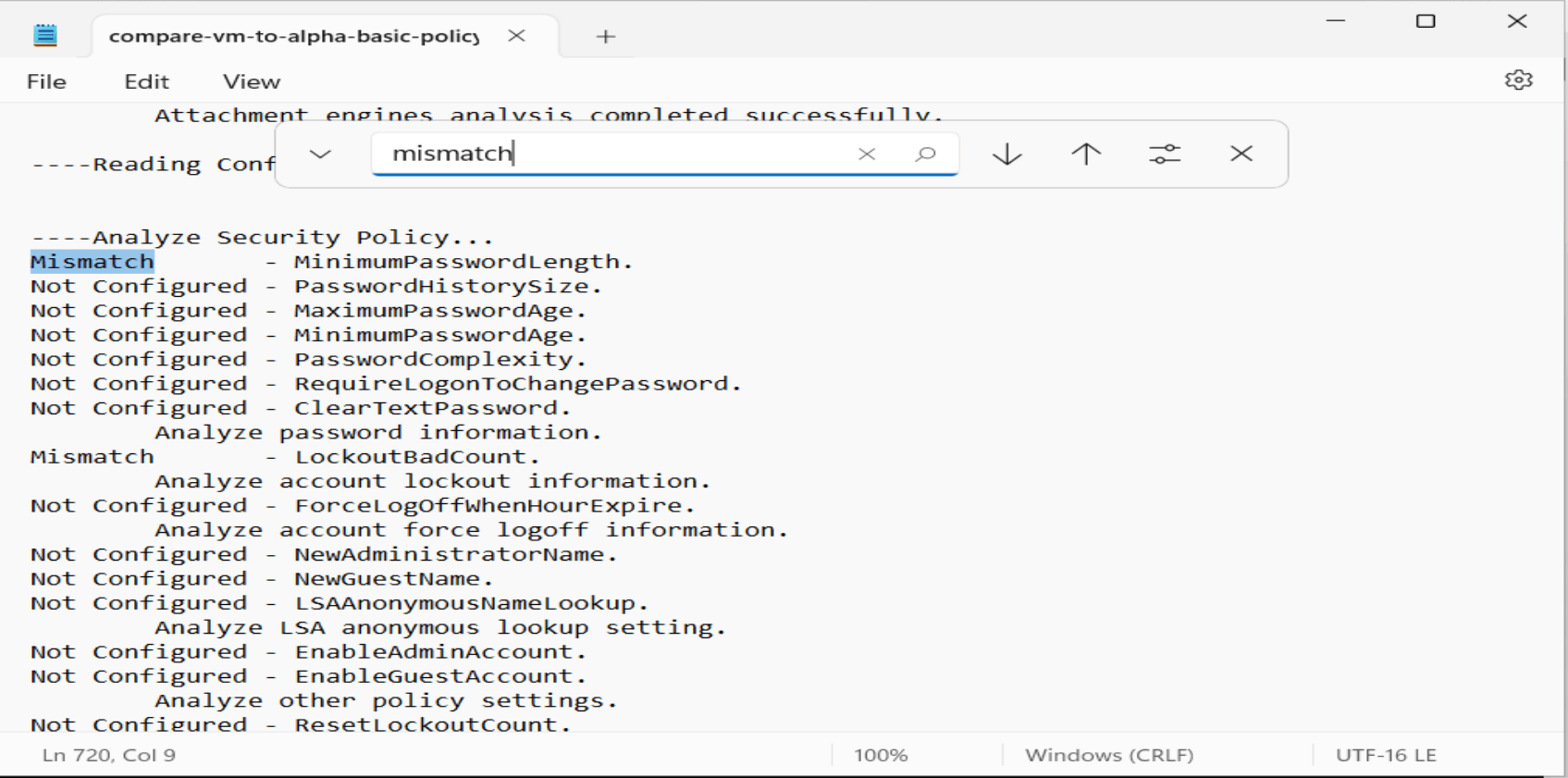

3Open the compare log and scan for Mismatch

Opened the log in Notepad and used Find to jump through 'Mismatch' entries. The --Analyze Security Policy-- section shows MinimumPasswordLength as Mismatch while adjacent settings (PasswordHistorySize, MaximumPasswordAge, PasswordComplexity) are Not Configured — meaning the template doesn't define them. LockoutBadCount is also flagged.

$ notepad C:\sec401\labs\5.3\compare-vm-to-alpha-basic-policy.log

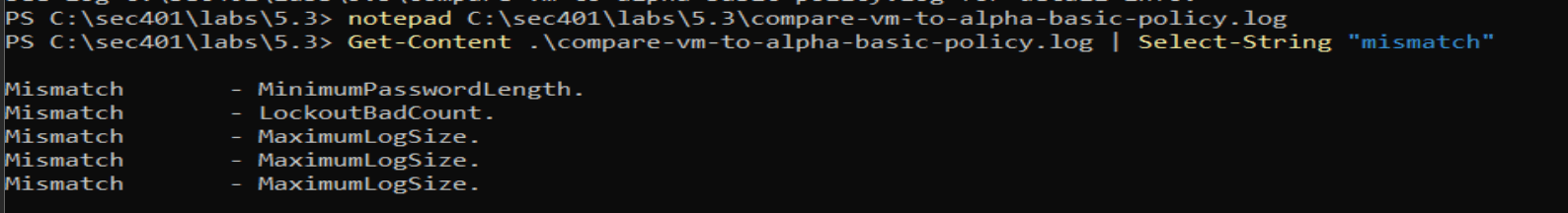

4Grep the log with Select-String

Piped Get-Content to Select-String 'mismatch' to list only the drift. Five Mismatch lines: MinimumPasswordLength, LockoutBadCount, and MaximumLogSize (x3 — one per event log: Application, Security, System). That's the exact hardening delta the template will apply.

$ Get-Content .\compare-vm-to-alpha-basic-policy.log | Select-String 'mismatch'

Get-Contentread file into pipeline

Select-Stringpattern match (PowerShell's grep)

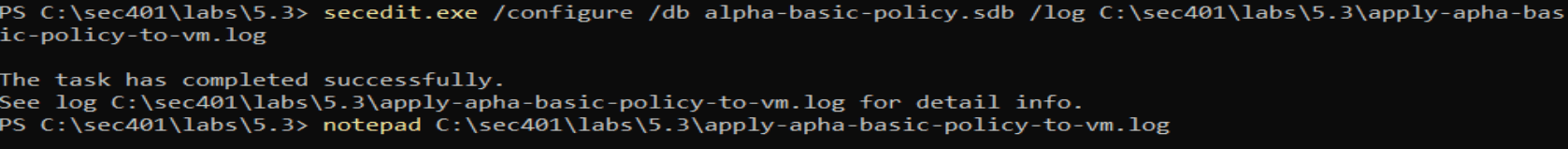

5Apply the template with secedit /configure

Ran secedit /configure using the same database. /configure is the verb that actually writes the template's settings into local policy. The task completed successfully message means every defined setting in the template was applied.

$ secedit.exe /configure /db alpha-basic-policy.sdb /log C:\sec401\labs\5.3\apply-apha-basic-policy-to-vm.log

/configureapply template settings to the host

/dbuse the prior analysis database (keeps settings consistent)

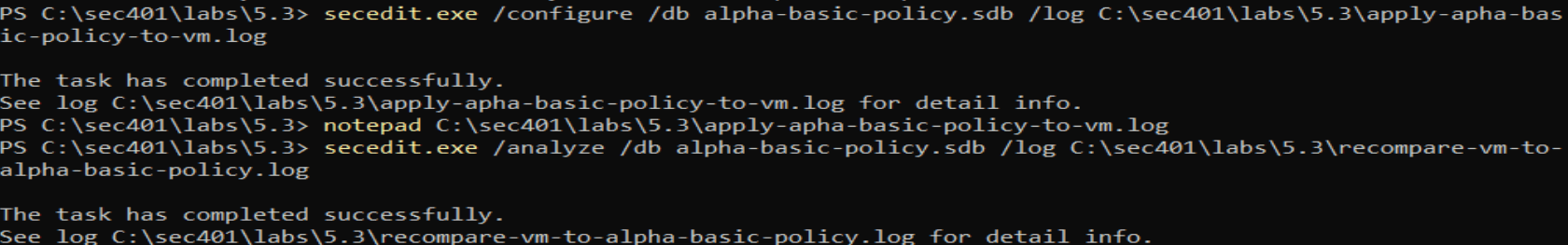

6Re-analyze to verify the drift is gone

Ran /analyze a second time and wrote the output to recompare-vm-to-alpha-basic-policy.log. Running the compare twice — once before /configure and once after — is the evidence pattern: the second log should show zero Mismatch entries, which proves the template was applied successfully.

$ secedit.exe /analyze /db alpha-basic-policy.sdb /log C:\sec401\labs\5.3\recompare-vm-to-alpha-basic-policy.log

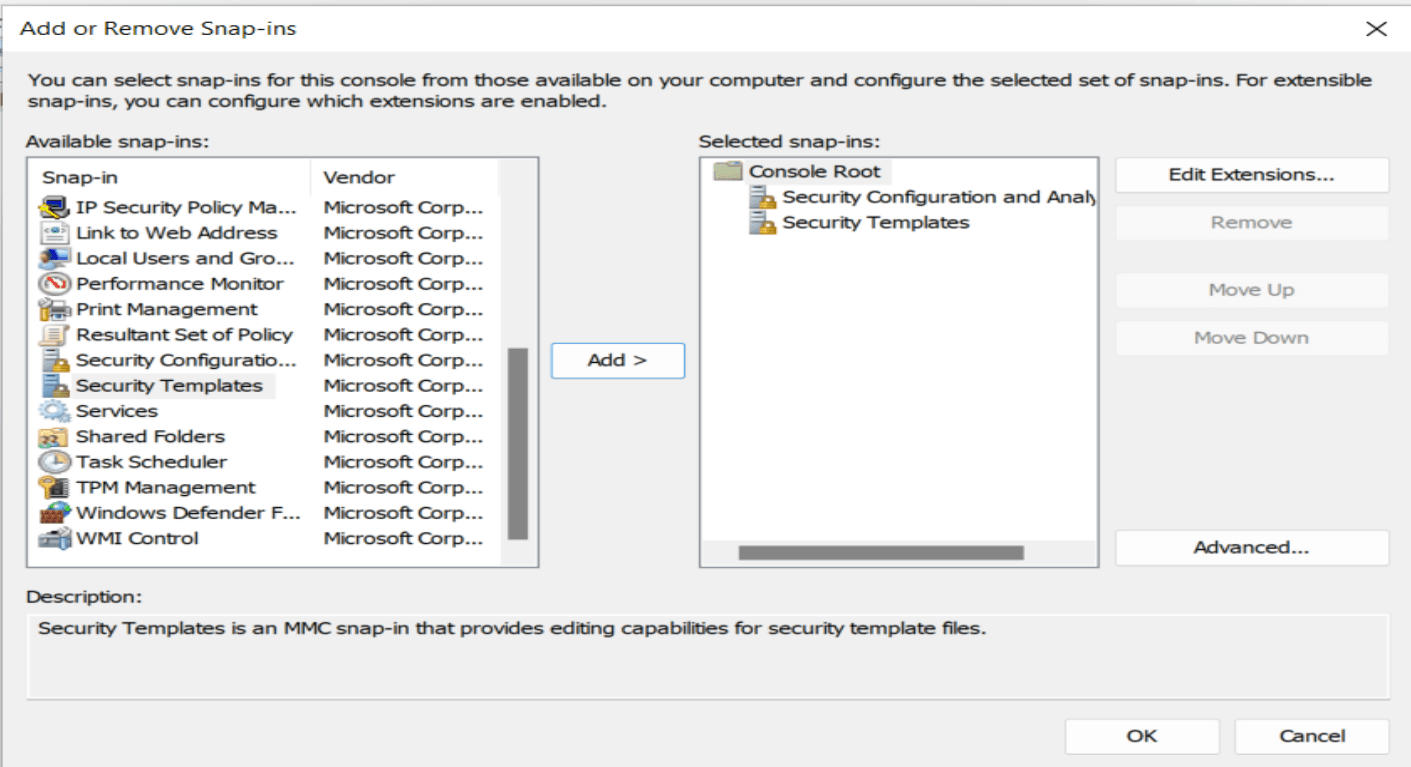

7Load the MMC snap-ins

Added Security Templates and Security Configuration and Analysis to an MMC console. The MMC snap-ins are the GUI equivalent of secedit /analyze and /configure — useful for editing .inf templates interactively and for analysts who prefer a tree view. Same engine, different surface.

$ mmc.exe  (File → Add/Remove Snap-in → Security Templates, Security Configuration and Analysis)

Key findings

Outcome / Lessons learned

Demonstrated the full Windows baseline compliance loop: analyze a host against a template, surface the exact drift with Select-String, apply the template, and re-analyze to prove the drift is gone — all from a single PowerShell console with secedit.exe.

In a fleet environment, push the .inf template via Group Policy (SCE → Security Settings) instead of running secedit host-by-host. Automate the analyze/configure/reanalyze loop with a PowerShell wrapper so the compare logs land in a central share for audit evidence. Replace the basic template with a CIS Benchmark or Microsoft Security Compliance Toolkit baseline and extend the detection pipeline so any Mismatch on a production host raises a SIEM alert.
